Clamshell Plant Pot

As part of my engineering course ENGR-430 at Iowa State University, my partner Luke Dietrich and I created the Clamshell plant pot. Designed specifically for the agriculture and horticulture industry, this square-shaped pot provides an ideal environment for root growth. It simplifies the process of transplanting seedlings, allowing for easy removal and reusability of the pot. Simply fill the pot with soil, sow your seed, place it in the rack, and wait for your seedling to grow. Once your seedling has reached the desired size, transplanting is a breeze - push the Clamshell into the ground, open it up, and remove it. The seedling will stay in the ground, and the Clamshell can be used again and again, ensuring an efficient and stress-free process.

CAD Model

This CAD model depicts a square-shaped seedling pot designed for use in agriculture and horticulture. The pot is made up of two identical parts that fit together, creating an optimal environment for the seedling's roots to grow. The square shape of the pot ensures that the roots have plenty of space to grow and expand. The bottom of the pot can be opened up for easy and stress-free transplanting of the seedling. With this innovative design, transplanting seedlings has never been easier!

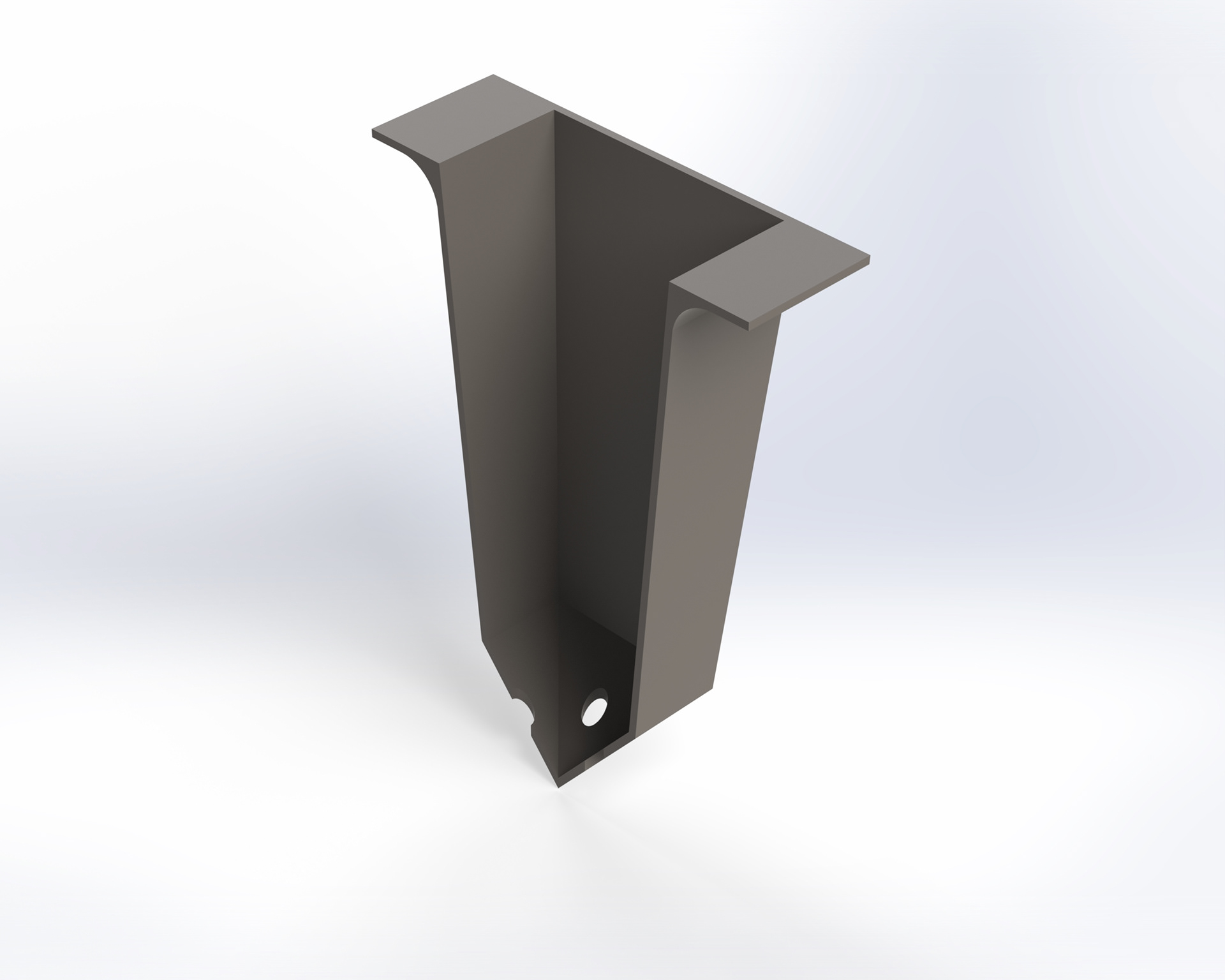

Angle View

Back View

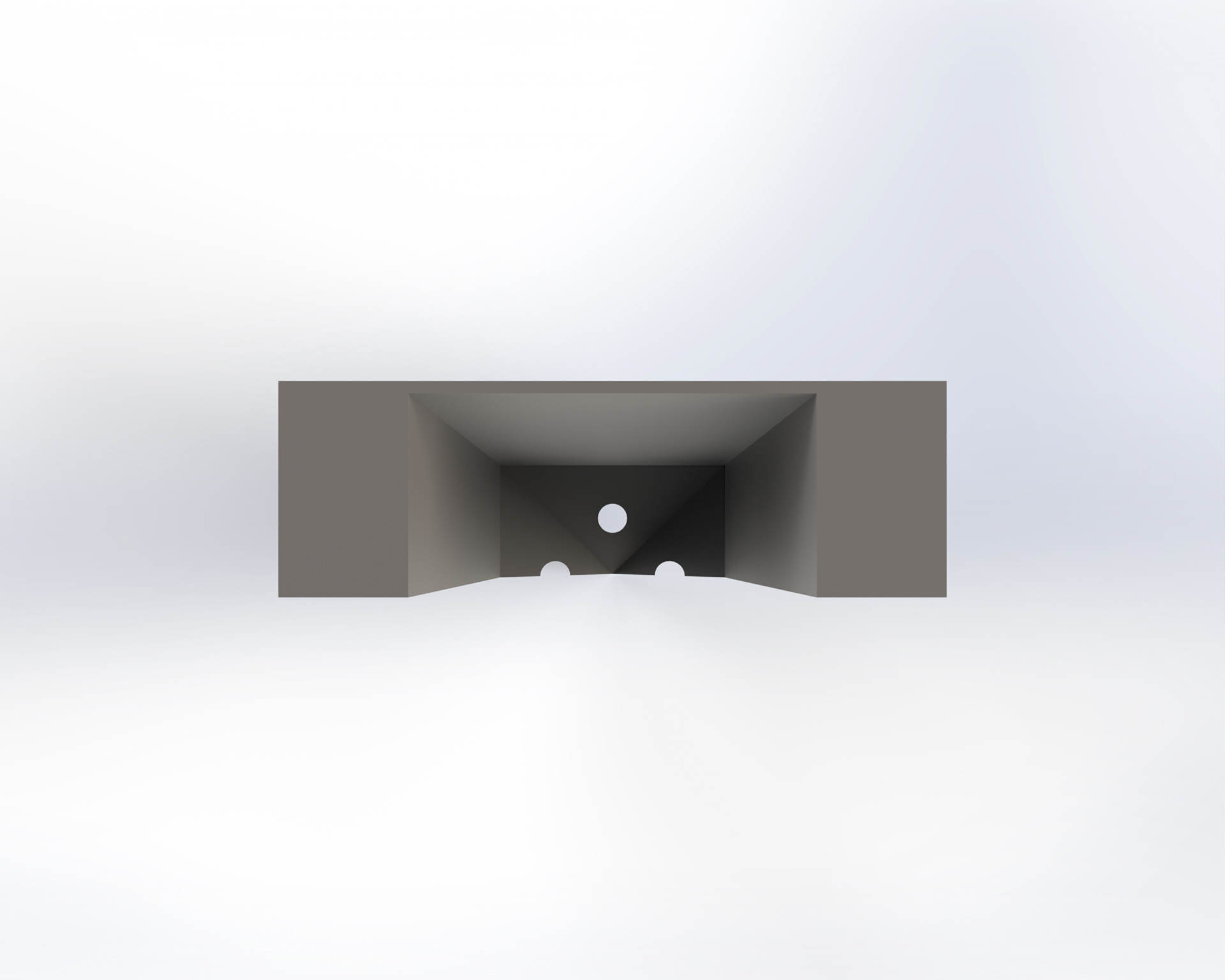

Top View

Use

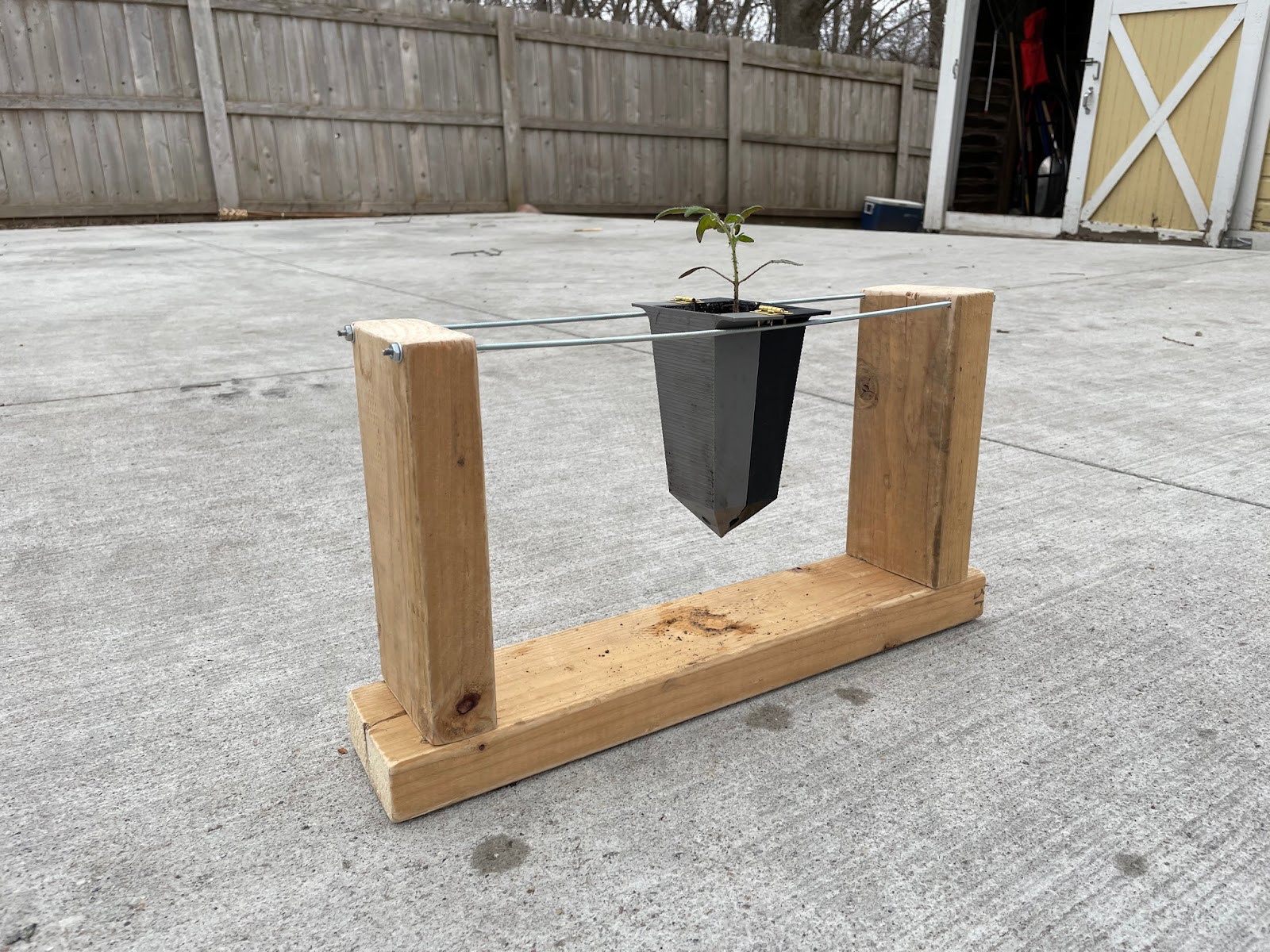

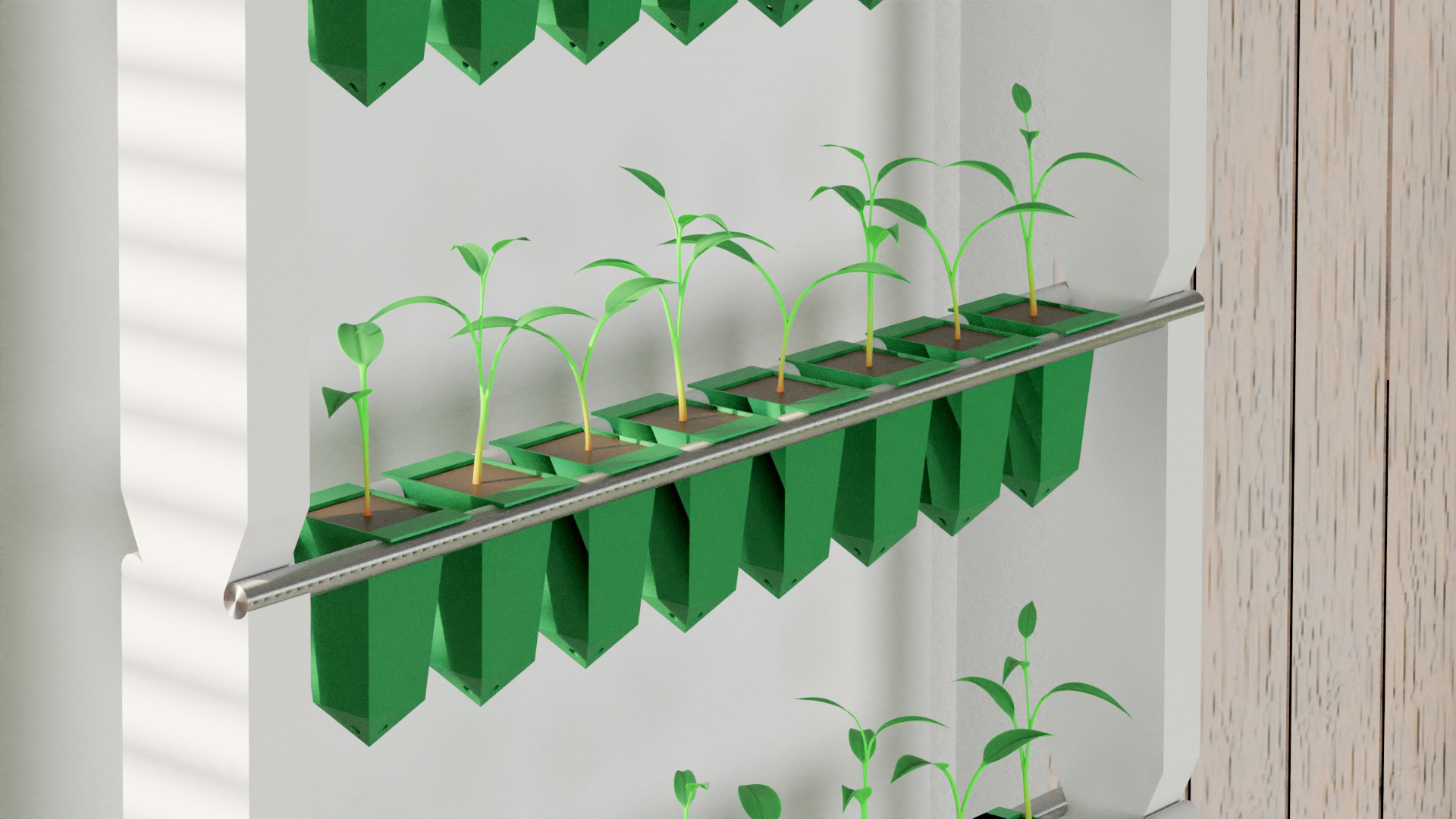

The Clamshell plant pot is designed to make the process of transplanting seedlings easy and stress-free. To get started, fill the pot with potting soil and sow your seed. Then, place the Clamshell in the holding tray with the other pots. As the seedling grows to its desired size, continue to water it and care for it until it's ready for transplanting.

When the time comes, remove the Clamshell from the tray and take it to the location where you want to transplant the seedling, whether it's a bigger pot or a field. To transplant the seedling, simply push the Clamshell into the ground. Then, fold the hinges to open the Clamshell, leaving the seedling and its soil in the ground while the Clamshell can be safely and easily removed.

After use, the Clamshell can be cleaned and reused, making it a sustainable option for gardening and agriculture. The square shape of the pot provides a better environment for the roots to grow in, and the Clamshell design makes it easy to remove the seedling without damaging it. Overall, the Clamshell plant pot simplifies the process of transplanting seedlings and makes it accessible to anyone, regardless of gardening experience.

Step 1: Sow a seed and let it grow

Step 2: Remove the Clamshell from its tray

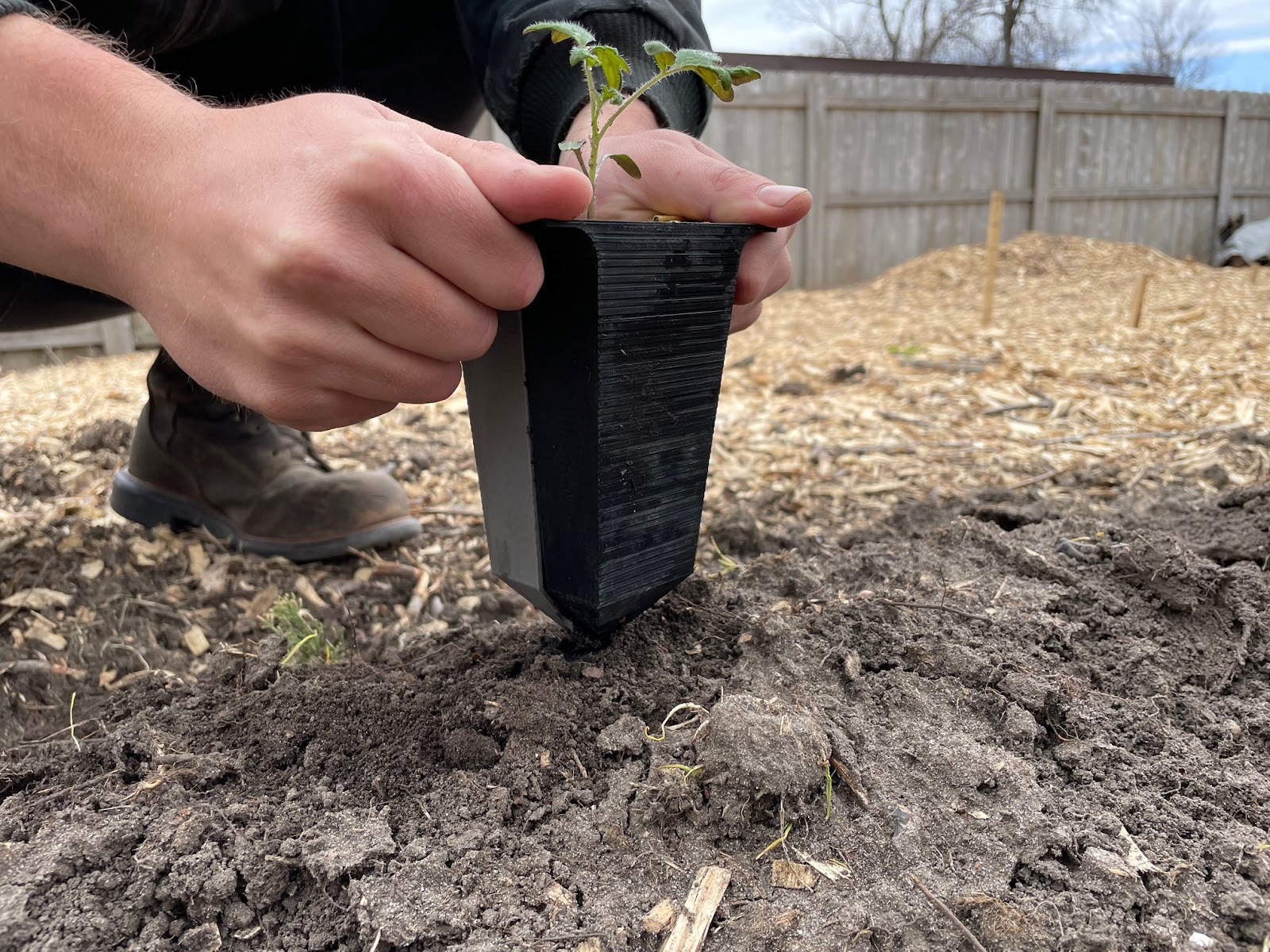

Step 3: Place the Clamshell in the ground

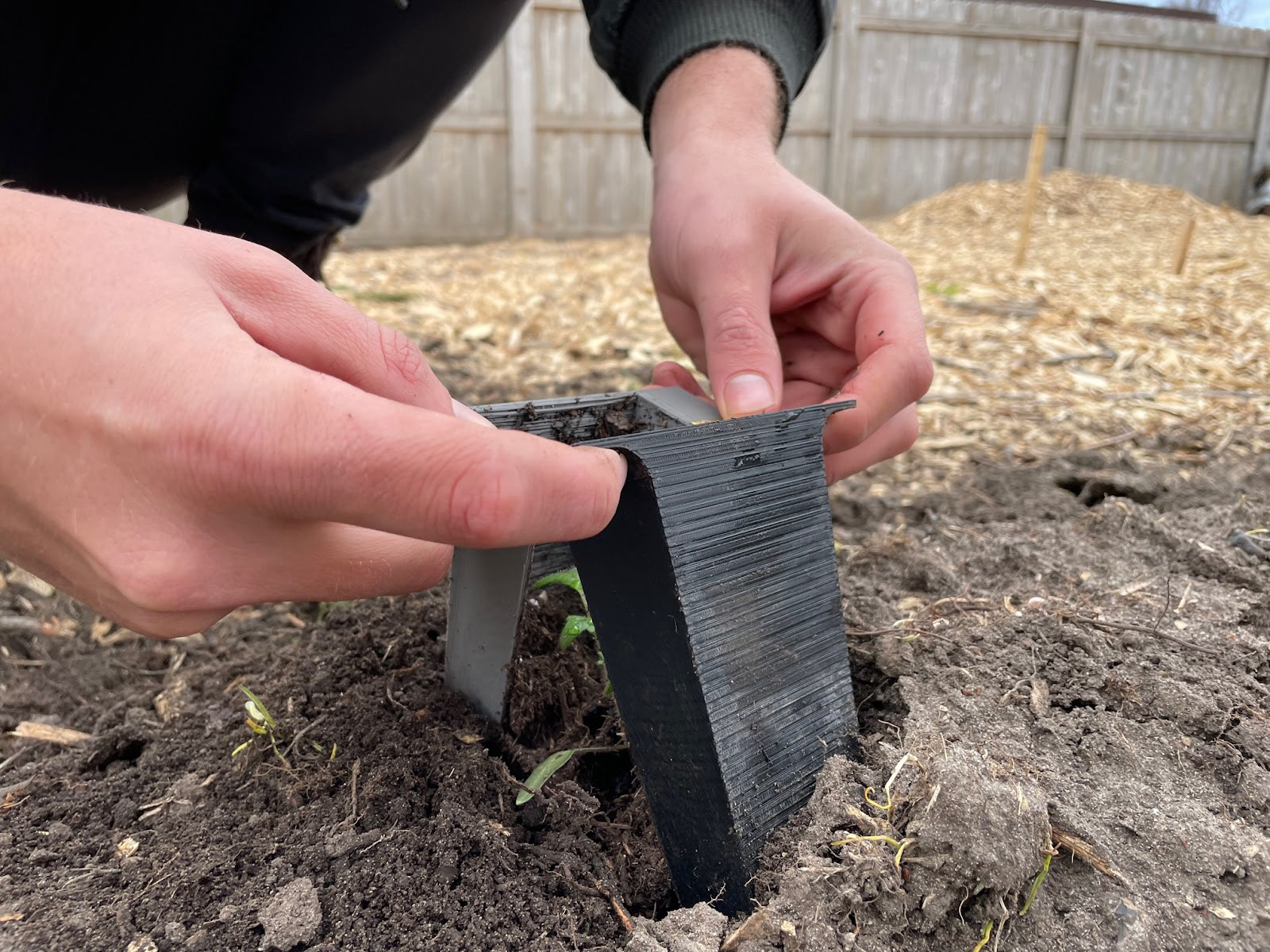

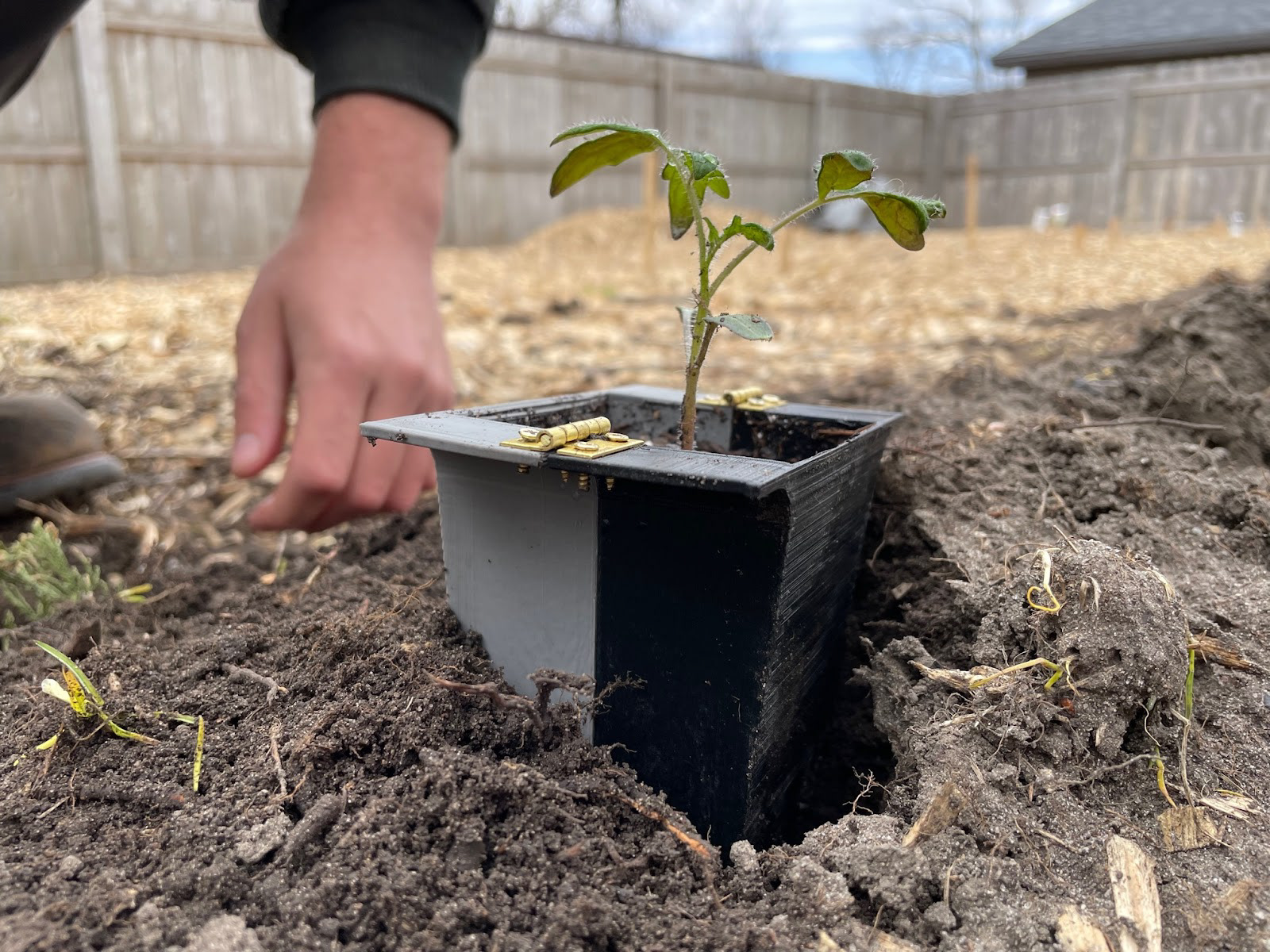

Step 4: Open and remove the Clamshell

Packaging

Our Clamshell plant pot packaging design is inspired by nature and the earth. The green and brown colour scheme reflects the environmentally friendly nature of our product, while the minimalist design ensures that our logo and product information stand out. With a prominent logo and website link, customers can easily recognize and learn more about our product. Also being made out of paper, we believe that our packaging design is a great representation of our commitment to creating sustainable and stylish products.
